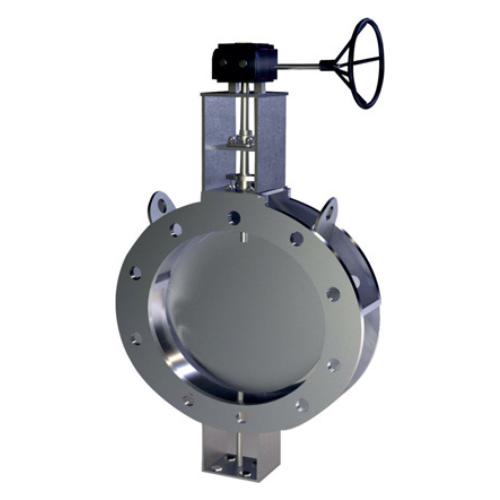

Double flange damper butterfly valve
Product Description
| BODY | DISC | MS FABRICATED (IS 2062 Gr. B) |
| SEAT | METAL TO METAL |
| INSP & TEST STD | BS 6755 | BS 5155 |
| LEAKAGE CLASS | CLASS IV AS PER 16.104 |
| RATING | 5 Kg/Cm ² |
| OPERATING TEMP. | UPTO 1200 °C |
| ENDS | DOUBLE FLANGE |
| OPERATION | LEVER | GEAR | PNEUMATIC OPERATED | ELECTRICAL ACTUATED |
| SIZE RANGE | 200 MM TO 2000 MM |
